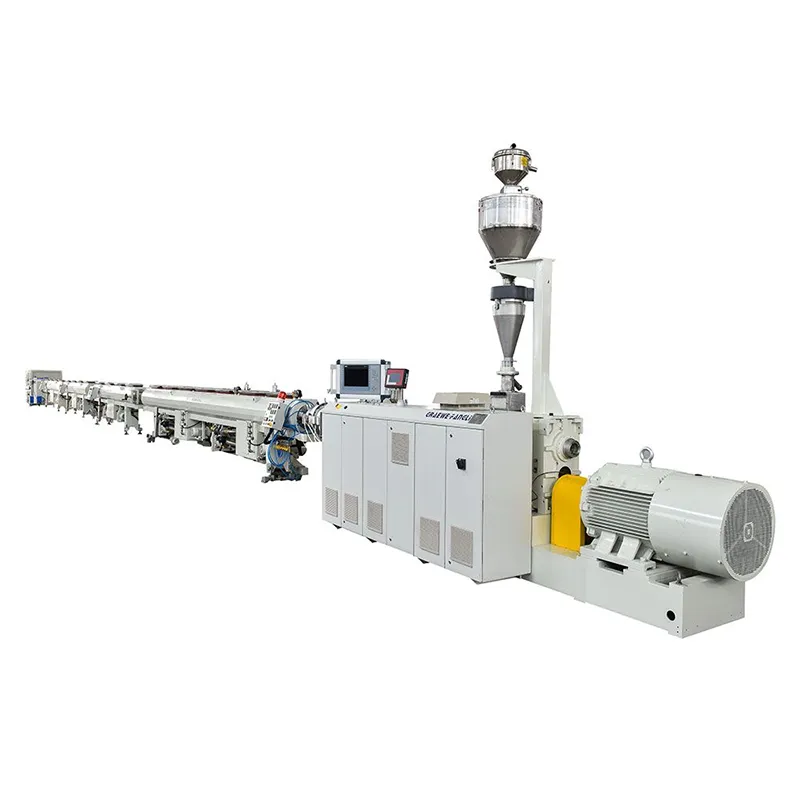

PVC-O Pipe Extrusion Line

PVC-O Pipe Extrusion Line adopting a one-step PVC-O online production process, it has high production efficiency, low comprehensive energy consumption, and stable product quality. Independently designed and manufactrued, with complete independent intellectural property rights. We can provide a perfect integrated solution for mixing, extrusion, orientation expansion, and expansion molding.

The unique formaula system, special mold design, innovative expansion molding system, and integrated operation control system ensure the stable operation of the complete equipment and the improvement and stability of product grades.

Compared with similar equipment at home and abroad, ith has the advantages of compact structure, easy operation, high degree of automation, and cost savings.

● The PVC-O Pipe Extrusion Line adopting GRAEWE·FANGLI high-end branded configurations;
● 36L/D parallel twin-screw design tailored for the high-efficiency plasticizing requirements of PVC-O formulations, achieving efficient plasticization and uniform mixing to ensure stable melt extrusion;
● Die with dual-compression flow channel and zoned independent temperature control to eliminate weld lines, optimize pipe wall thickness uniformity, and enhance physical strength;
● Single-chamber vacuum tank equipped with automatic water level and temperature control systems for a consistently stable sizing process; Combined hot air + infrared temperature control ensures uniform temperature of the parison;
● Servo-controlled haul-off system supports synchronized clamping and dual-caterpillar enhanced traction, meeting complex process requirements such as thin-wall and expansion, ensuring high forming quality;
● Air-expanding, low-friction orientation and stretching technology, coupled with circulating water cooling, achieves rapid sizing and smooth inner wall, resulting in excellent product consistency;

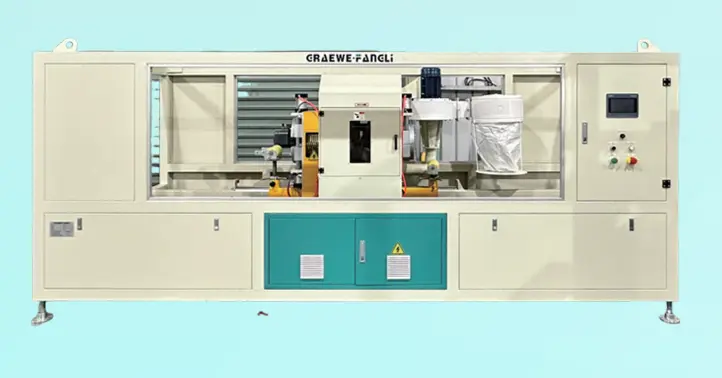

● Servo planetary cutting technology delivers uniform chamfering, especially suitable for thin-wall pipe processing, with easy changeovers to enhance production flexibility;

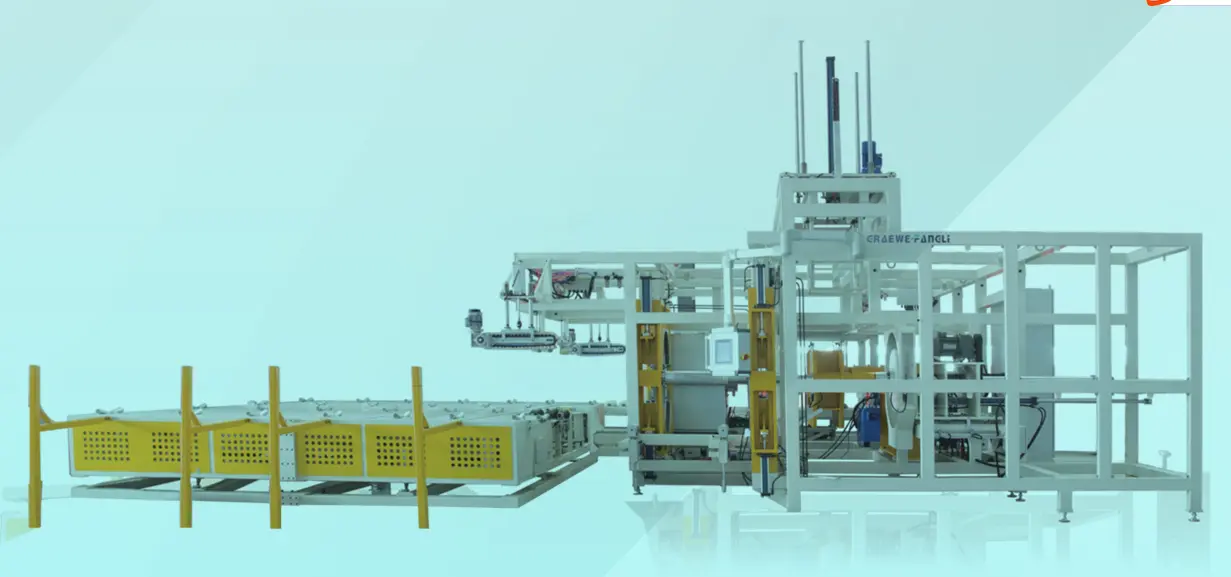

● Integrated heating and belling structure provides circulating and uniform heating to promote molecular orientation, enhancing the strength, toughness, and fatigue resistance of the pipe end.

Product Parameter (Specification)

Parameters are subject to change without prior notice

Product Details

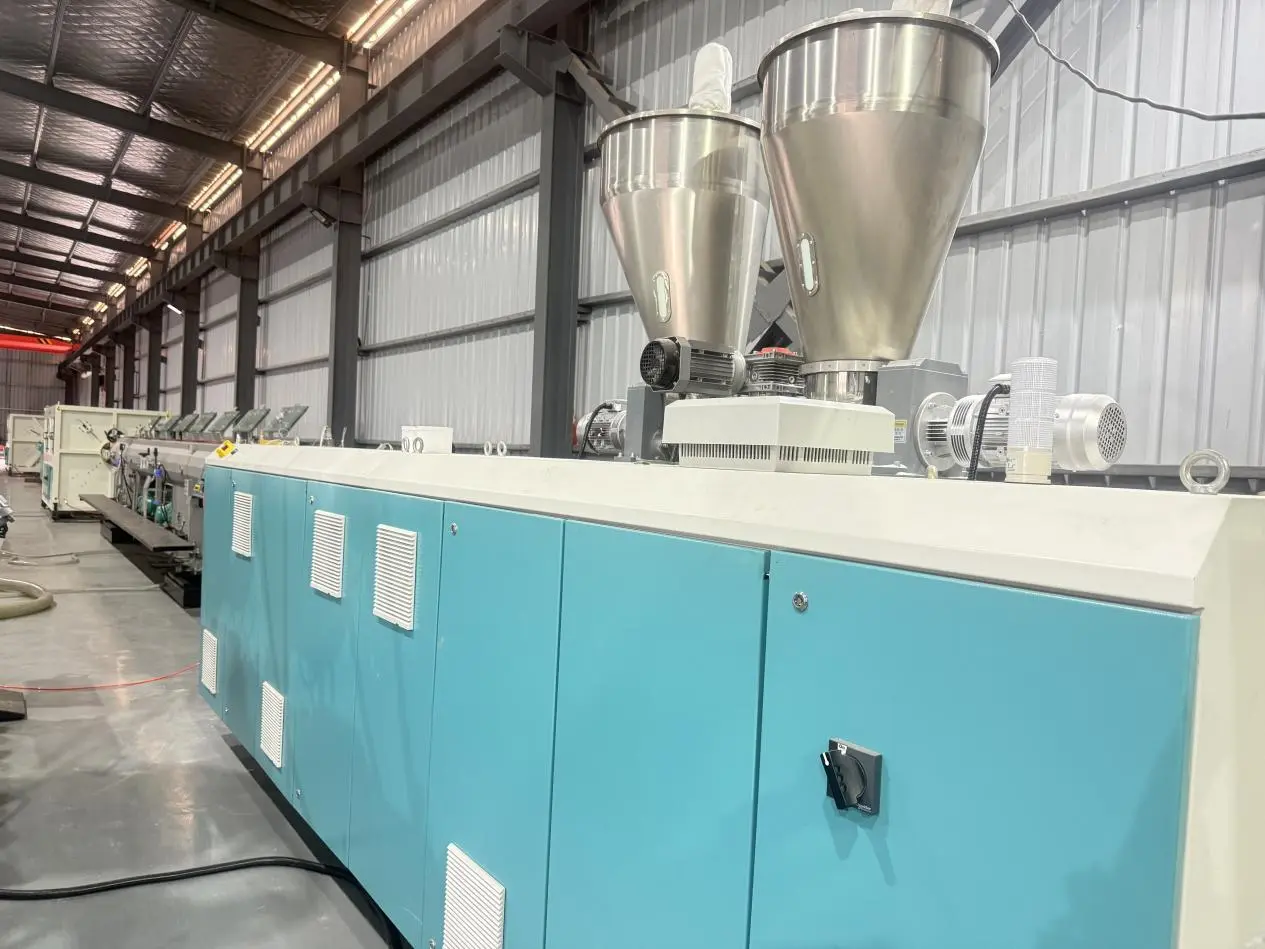

Parallel twin-screw extruder

Extrusion Die

Haul off unit
